- Length (overall): 584mm
- Length (chassis): 549mm
- Front Track: 249mm
- Rear Track: 249mm
- Ground Clearance: 80mm
- Weight: 2.91kg
- Height: 239mm
- Wheelbase: 324mm
- Front Shock Length: 90mm
- Rear Shock Length: 90mm
- Front Wheels: 1.9 x 1.02” (49 x 26mm)
- Rear Wheels: 1.9 x 1.02” (49 x 26mm)
- Front Tires: 118 x 48mm
- Rear Tires: 118 x 48mm
- Approach Angle: 52°
- Departure Angle: 49°
- Breakover Angle: 58°
- Hex Size: 12mm
- Speed Control: XL-5 HV
- Motor (electric): 21T Reverse Rotation
- Transmission: 2-speed Hi-Lo, Remote Shifting
- Gear Pitch: 32P
- Differential Type: 4 Gear, Remote Locking
- Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft Driven 4WD
- Steering: Chassis Mounted Servo
- Servo: 2075X Metal Gear
- Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
- Receiver: 6533
- Skill Level: 1
- Battery Tray: L158.75 x W47 x H23/26mm
Motor Specs:
- Type: High-torque brushed motor
- Size: 550
- Weight: 390g
- Length: 78mm (overall), 57mm (can)
- Diameter: 38.9mm
- Turns: 21T reverse rotation
- Voltage: 16.8V
ESC Specs:
- Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
- Motor Limit: 21-turns (550 size)
- Peak Current - Forward: 100A
- Peak Current - Reverse: 100A
- Braking Current: 60A
- Continuous Current: 18A
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal Shutdown
- Single-button setup: Yes, Traxxas EZ-Set®
Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
- Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
- Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
What’s In The Box:

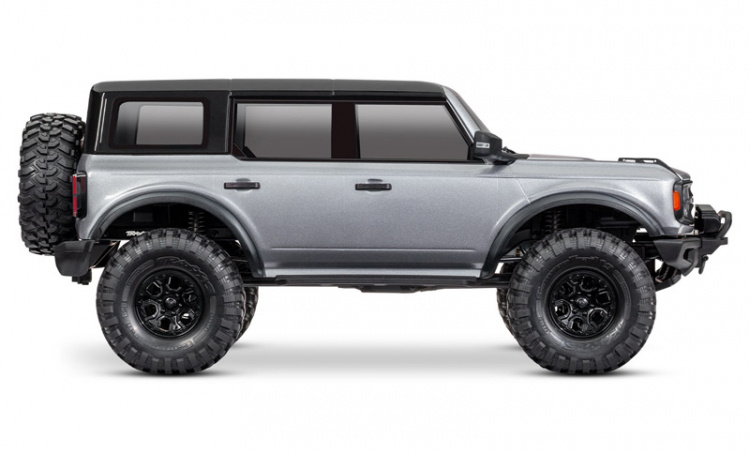

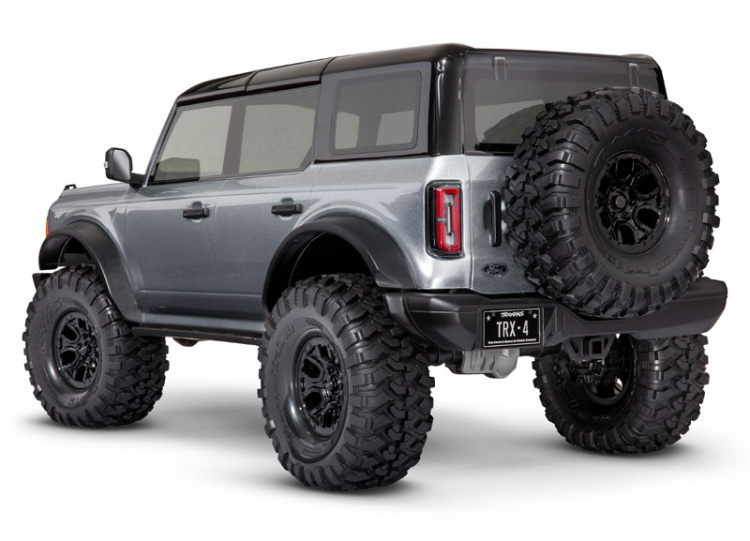

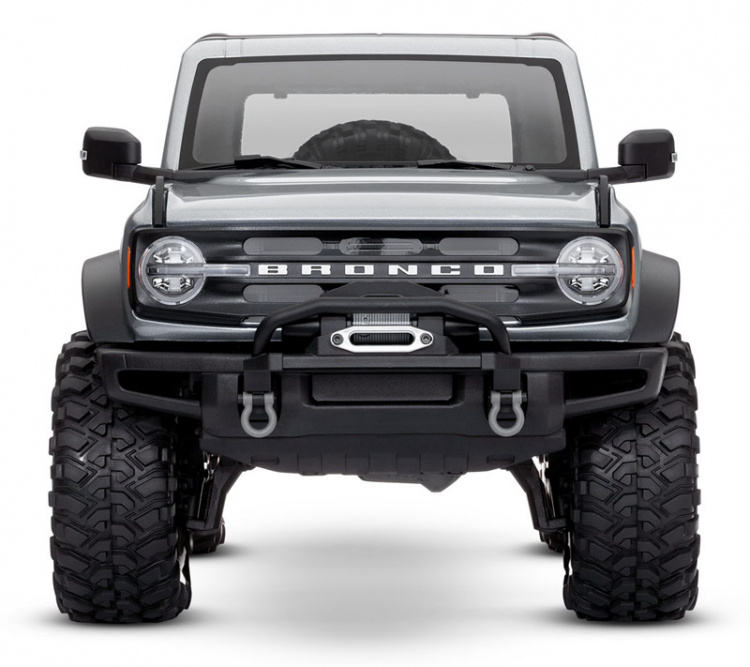

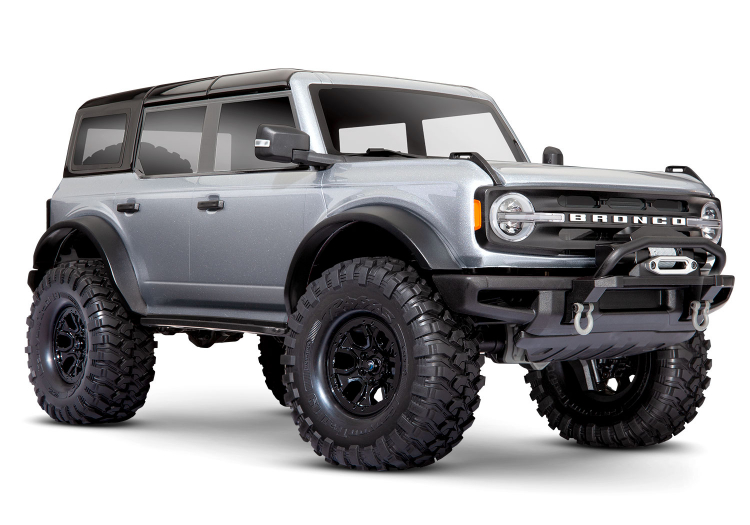

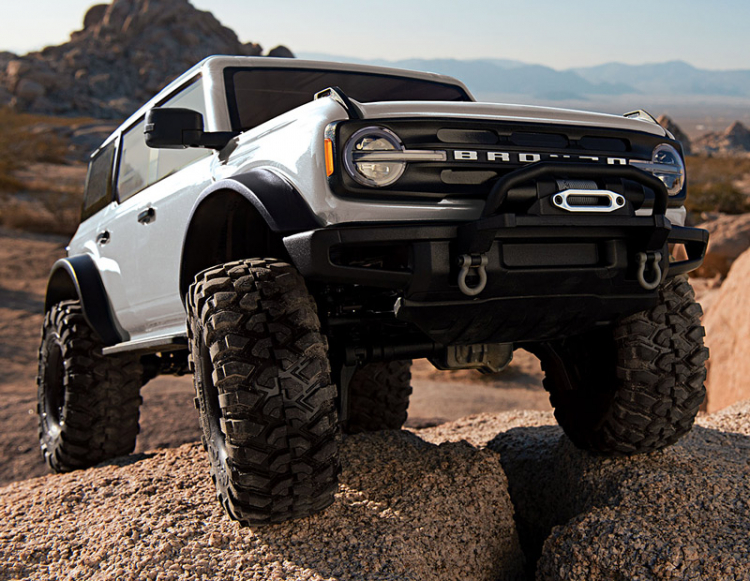

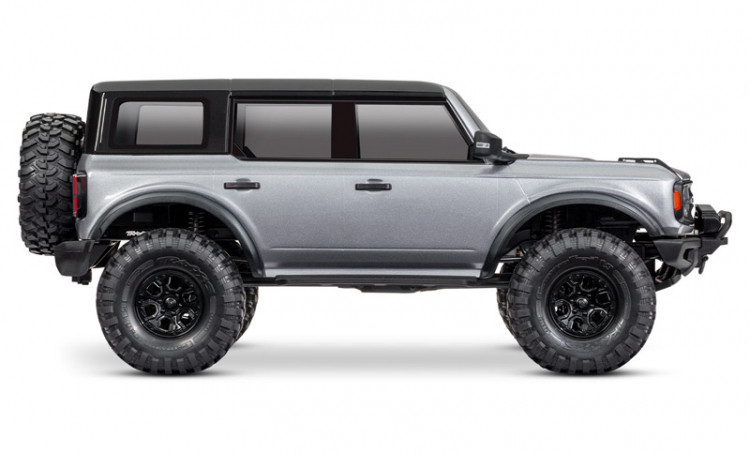

- TRX-4, Ready-To-Race® model
- XL-5 HV waterproof electronic speed control
- Titan™ 21T reverse rotation motor
- TQi™ 2.4GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need:
- Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
- Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
- AA Alkaline Batteries: Four AA batteries for the transmitter.
