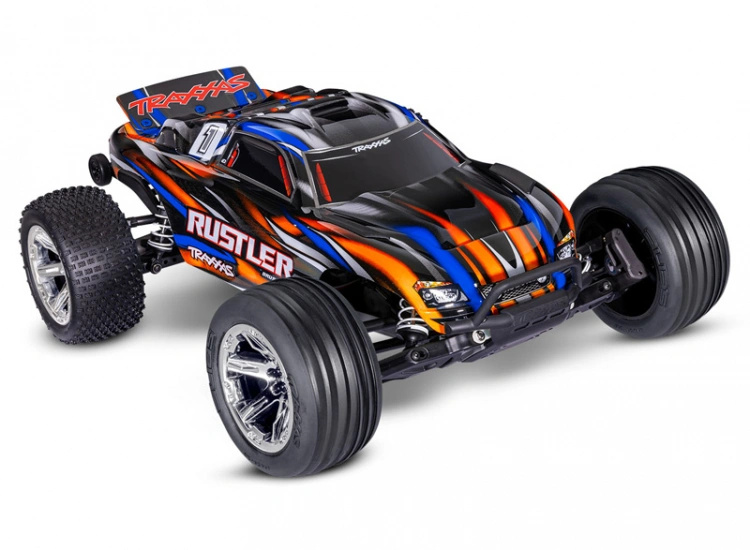

Rustler® 4X4 is the definitive go-to machine for speed, agility, and unstoppable 4WD traction. Beneath the reinforced clipless body, Rustler’s chassis sits low and wide for increased stability and sharp handling. Rustler’s all-new BL-2s™ brushless power system delivers effortless power for all-day fun with an added boost of torque for 4-wheel burnouts and lightning-fast acceleration. Additionally, Rustler 4X4 now comes standard with Traxxas’ Extreme Heavy Duty Upgrade Kit to become the new standard for strength and durability.
New BL-2s Brushless Power System
Rustler 4X4’s BL-2s brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Rustler 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 kV is long-lasting and requires virtually no maintenance.
Extreme Heavy Duty Upgrade Kit
Rustler 4X4’s pre-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD suspension arms to the steel wheel hubs, this is the strongest driveline ever offered in a Rustler.
New Clipless Body Mounting
Rustler 4X4 uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. The sleek, aerodynamic body features a rugged internal structure and external rollover protection for long life and Traxxas-ToughTM durability.
Vehicle Specs:
- Length: 457mm
- Front Track: 329mm
- Rear Track: 329mm
- Ground Clearance: 27mm (center)
- Weight (no battery): 2.33kg
- Height (overall): 161mm
- Wheelbase: 295mm
- Shock Length (front): 88mm - Long
- Shock Length (rear): 101mm - XX-Long
- Speed Control: BL-2s™ electronic speed control
- Motor (electric): BL-2s™ 3300 kV sensorless brushless
- Overall Drive Ratio: 12.81:1
- Differential Type: Hardened steel bevel, sealed, limited slip
- Gear Pitch: 32
- Chassis Structure/Material: Composite tub
- Drive System: Shaft-driven 4WD
- Steering: Dual-bellcrank with integrated servo saver
- Tires: Talon™ EXT with foam inserts
- Tire Diameter: 114mm (front and rear)
- Wheels (front/rear): 2.8″ Gray RXT wheels
- Wheel Diameter: 2.8 inches (71mm)
- Radio System: TQ™ 2.4GHz (2-Channel)
- Servo: Waterproof digital #2056 servo (80oz-in torque)
- Skill Level: 1
- Battery Compartment (L/W/H): 162x50x25mm
- Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
Motor Specs:
- Type: BL-2s 3300kV sensorless brushless motor
- Weight: 213g
- Length: 80mm
- Diameter: 36mm
- Connector Type: Traxxas Quick Connect Motor Plug
ESC Specs:
- Input Voltage (cells): 6-7 Cells NiMH / 2S LiPo
- Weight: 87g
- BEC Voltage: 6V
- Reverse Delay: Yes, with lockout
- Thermal Protection: Two-stage thermal shutdown
- Ports: Auxiliary fan
- Sport Mode: Forward / Brake / Reverse
- Race Mode: Forward / Brake
- Training Mode™: 50% Forward / Brake / 50% Reverse (patented)
What’s In The Box:
- Rustler 4X4 with BL-2s ESC and 3300 kV motor
- Quick Start Guide
- TQ™ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries: Slash 4X4 requires a single NiMH or LiPo battery. See full list of batteries.
- Charger: Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
