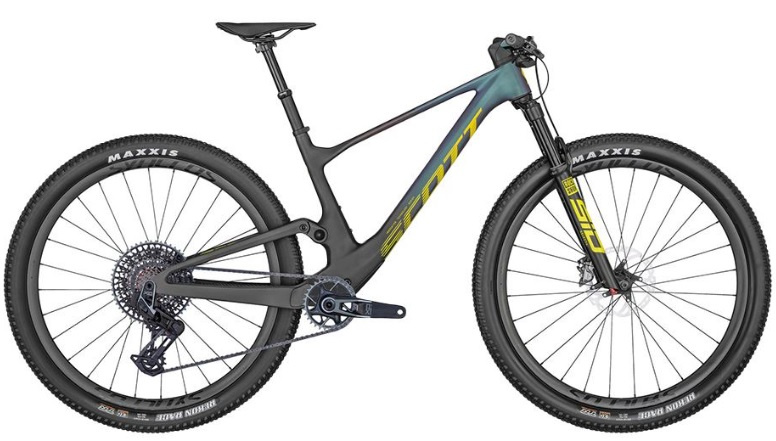

Spark RC Carbon HMXIntegrated Suspension TechnologyFlex Pivot / Adjustable head angleSyncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline
ForkRockShox SID Select+ RL3 AirCustom Charger 3-Mode Damper15x110mm Maxle Stealth / 44mm offset / Tapered steererLockout / Reb. Adj. / 120mm travel
Rear ShockRockShox NUDE 5 RL3 TrunnionSCOTT custom w. travel / geo adj.3 modes: Lockout-Traction Control-DescendDebon Air / Reb. Adj. / Travel 120-80-Lockout / T165X45mm
Remote SystemSCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 Suspension modes
Rear DerailleurSRAM X0 Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
ShiftersSRAM GX Eagle AXS Rocker Controller
CranksetSRAM X0 Eagle TransmissionDUB / 55mm CL / 32T
BB-SetSRAM DUB PF 92 MTB Wide / shell 41x92mm
ChainSRAM CN X0 Eagle Transmission
CassetteSRAM X0 Eagle XS 1295 Transmission 10-52
BrakesSRAM Level TLM Disc
RotorSRAM HS2 Rotos 180/F and 160/R
HandlebarSyncros Fraser iC SL XC Carbon-12° rise / back sweep 8° / 740mmSyncros Performance XC lock-on grips
SeatpostFOX Transfer SL Performance Elite Dropper Post31.6mm / S size 75mm / ML & XL size 100mm
SeatSyncros Belcarra Regular 1.5Titanium rails
HeadsetSyncros - Acros Angle adjust & Cable Routing HS SystemStainless+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
WheelsetSyncros Silverton 1.0-30 6 BoltF: 15x110mmR: 12x148mm30mm Tubeless ready Carbon rim 28HDT Swiss Ratchet Hubs / XD DriverSRAM TyreWiz ready / Syncros SL Axle w/Removable Leverwith 6mm AllenT30 and T25 Tools
Front TireMaxxis Rekon Race / 29x2.4" / 120TPI Foldable BeadTubeless Ready / EXO
Rear TireMaxxis Rekon Race / 29x2.4" / 120TPI Foldable BeadTubeless Ready / EXO
ExtrasSRAM AXS Powerpack
AccessoriesSyncros Eco SealantTransport Axle
Approx weight in KG10.9 (Tubeless setup)
Approx weight in LBS24.03 (Tubeless setup)
Max. System Weight128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
